Vertikal VRTABL18D Articulated Boom Lift

Vertikal Articulating Boom Lifts are divided into two types: battery powered and diesel engine with a maximum working height from 14m to 47.3m. Our articulated boom lifts are CE certified. The main components belong to internationally recognized brands. The cordless articulated boom lifts are suitable for indoor use as they operate quietly. There is a manual emergency landing system that can allow the machine to operate normally when the power is cut off. Diesel engine articulated lifts have a patented technology weight measuring device that can make full weighing to prevent malfunction.

Description

Model	VRTABL18D
Working Height Maximum	20m
Platform Height Maximum	18m
Working radius maximum	10.8m
Lift capacity	230kg
Crossing height maximum	9.2m

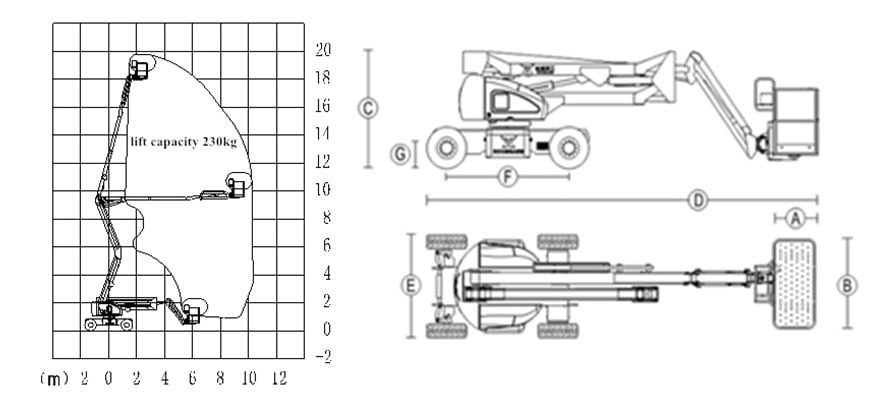

Length( stowed) Ⓓ	8.1m
Width (stowed) Ⓔ	2.38m
Height(stowed) Ⓒ	2.38m
Wheel base Ⓕ	2.6m
Ground clearance Ⓖ	0.3m
Platform measurement Ⓑ*Ⓐ	1.530.761.13m
Tailswing	0m
Turning radius Minimum	4.5m
Travel speed(stowed)	5km/h
Travel speed(raised or extended)	0.8km/h
Gradeability	25%
Solid tire	33*12-20
Swing speed	0~0.8rpm
Turntable swing	360° Continuous
Platform levelling	Automatical levelling
Platform rotation	±80°
Hydraulic tank volume	70L
Total weight	8550kg
Control voltage	24V
Travel electric motor	6.5*2kw
Maintenance-free Battery	8*6/420V/Ah
Charger	48/40 V/A
